Double Layer Insulated Shutters Door Forming Machine
Double Layer Insulated Shutters Door Forming Machine
Double Layer Insulated Shutters Door Forming Machine
Double Layer Insulated Shutters Door Forming Machine

Double Layer Insulated Shutters Door Forming Machine



Payment Type:L/C,T/T

Incoterm:CFR,FOB,CIF,EXW

Min. Order:1 Set/Sets

Transportation:Ocean

Port:shanghai

sales@cxrollformer.com

Tel: 008613357917888

Whatsapp: 8613357917888

Double Layer Insulated Shutters Door Forming Machine
Double Layer Insulated Shutters Door Forming Machine
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Product Attributes

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Turkey, United Kingdom, United States, Italy, France, Germany, Spain, Russia, Mexico, India, Saudi Arabia, Peru, Brazil, Morocco, Kenya, Chile, South Africa

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, France, Mexico, Germany, Russia, Spain, Kenya, Morocco, Chile, South Africa

Core Components: Plc

Out-of-warranty Service: Online Support



Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

Port: shanghai

Payment Type: L/C,T/T

Incoterm: CFR,FOB,CIF,EXW



Packaging & Delivery

Selling Units:

Set/Sets

Main Technical Data



Main component of the line:

NO.

name

quantity

Main roll former



1

Un-coiler (3 tons ) Motor

2

2

Upper roll former

1

3

Down roll former

1

4

Combined roll former

1

5

Pneumatic Fly Saw cutter with servo control system

1

6

PLC control cabinet

1

7

Output table with rollers(6meters)

1

8

Low pressure foam injection machine

1

9

Warm box

1



TECHNICAL DETAILS

Un-coiler

  1. Capacity: 3 tons
  2. Material: #45 steel
  3. Motor drived: China brand 3 KW. 380V, 60HZ
  4. Inner diameter: 410~ 580mm

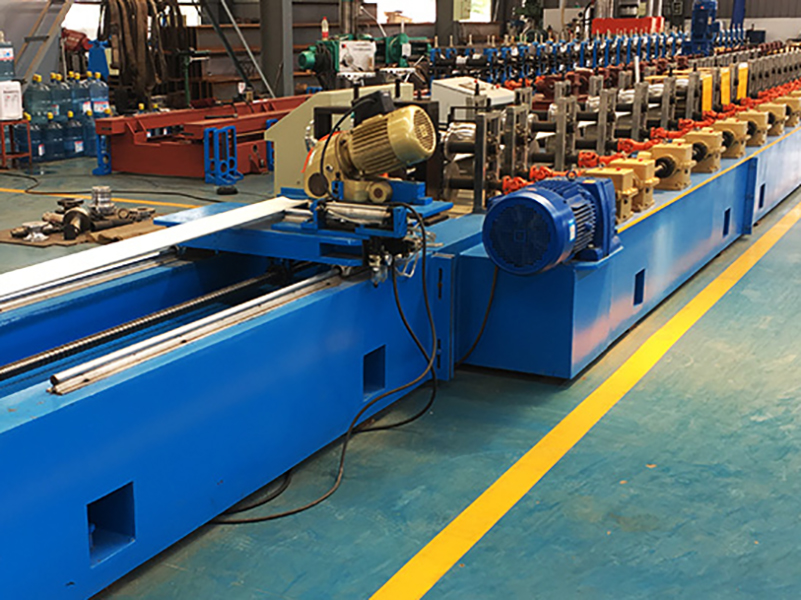

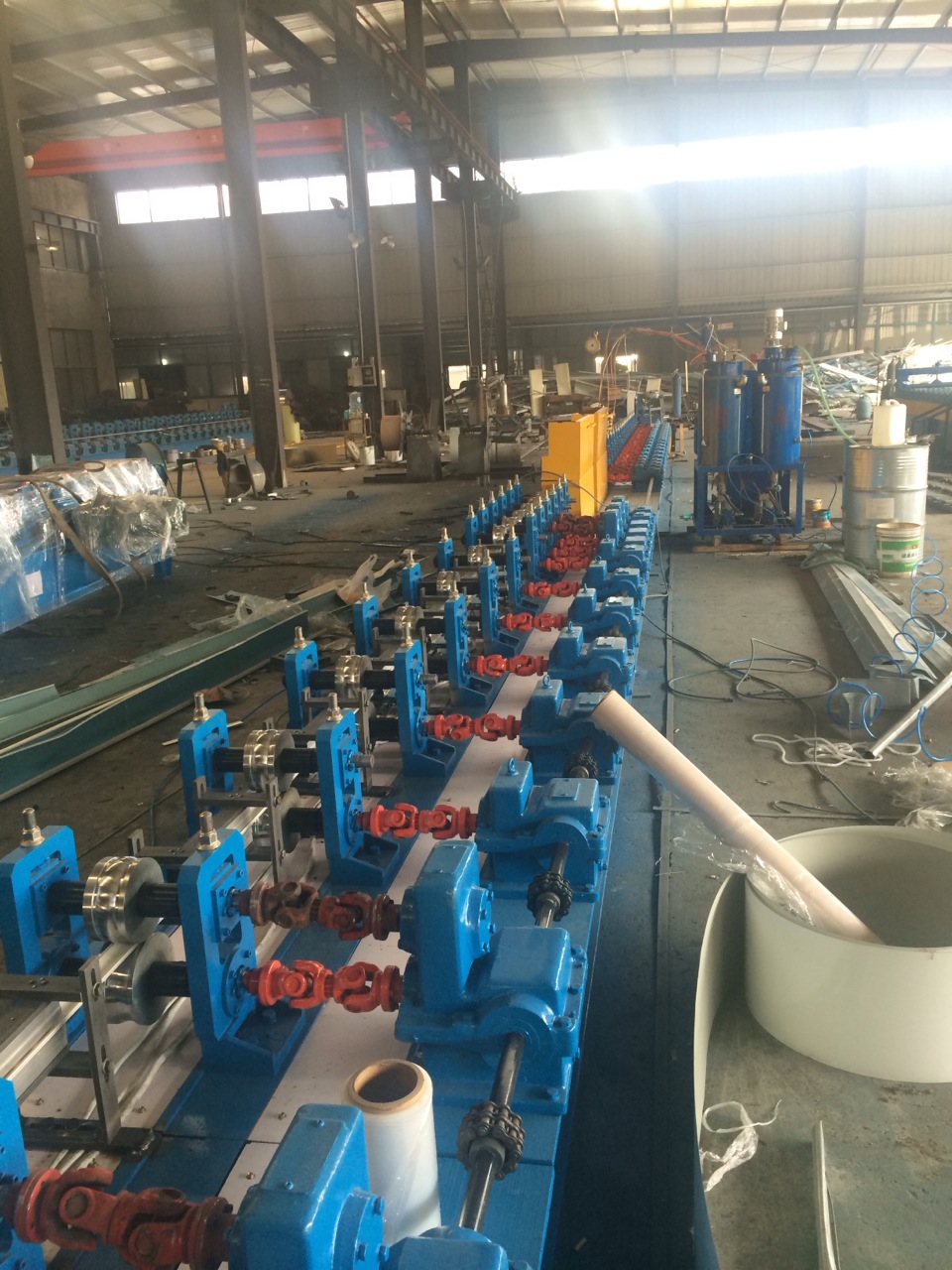

Main roll former

  1. Stations: 36
  2. Rollers material: CR15; HRC 60. Chrome coated: 0.03mm. The Strength in Mpa: 70 TON,800 MPA
  3. Shaft material: Diameter: 70mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
  4. Bearing brand: FAG Germany
  5. Main Motor: 11KW, China top brand, 380V, 60HZ
  6. H Beam 500 mm with precision welded



CHEMICAL COMPOSITION:

C

SI

MN

P

S

CR

NI

CU

MO

AI

V

B

Shaft

0.450

0.220

0.540

0.027

0.008

0.050

0.020

0.010

0.000

0.009

0.000

0

Rollers

























Cutter

1.57

0.34

0.38

0.022

0.010

11.10

0.18

0.14

0.48







Cut knife

2.04

0.23

0.23

0.020

0.010

11.66

0.12

0.06

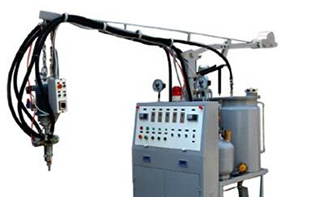

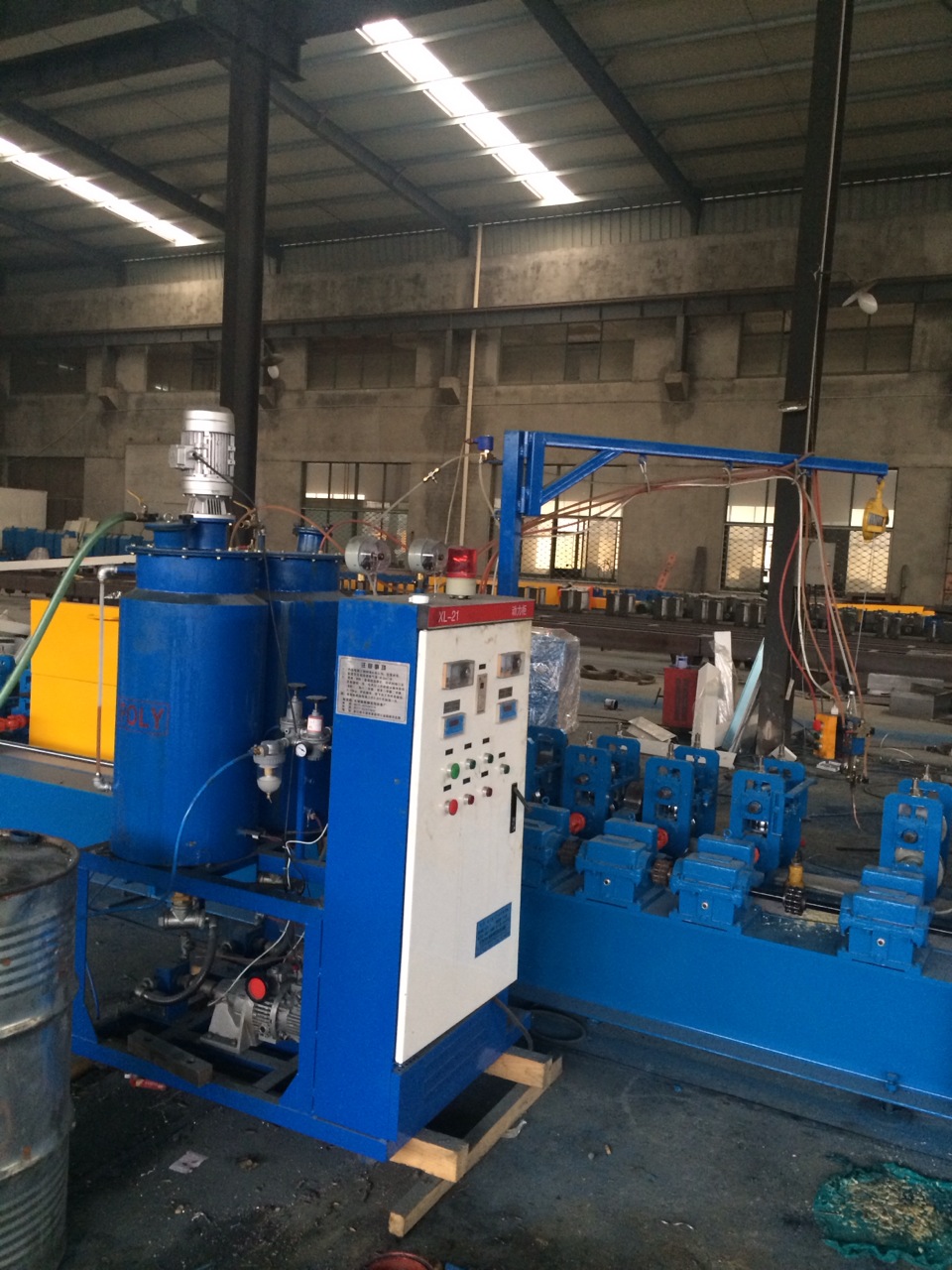

Foam injection machine



  1. Motor power: total 5.5 KW; 380V; 50/60HZ
  2. Mixing head with one spare is included
  3. Mixing pump quantity: 8g/Second
  4. Density: 70 ~ 80 Kg/M
  5. Mixing type: mechanical & automatic
  6. Washing: Automatic
  7. Tank volume: 50 KG / tank. Both Poly and ISO
  8. Brand of Foam machine: GREAT WALL.



PLC Control Cabinet:

  1. Touch screen brand: DELTA
  2. PLC brand: DELTA
  3. Inverter brand: DELTA
  4. Main components for low pressure electricity: Schneider Germany



Output table

  1. Length: 6 meters
  2. Drive type: Rollers

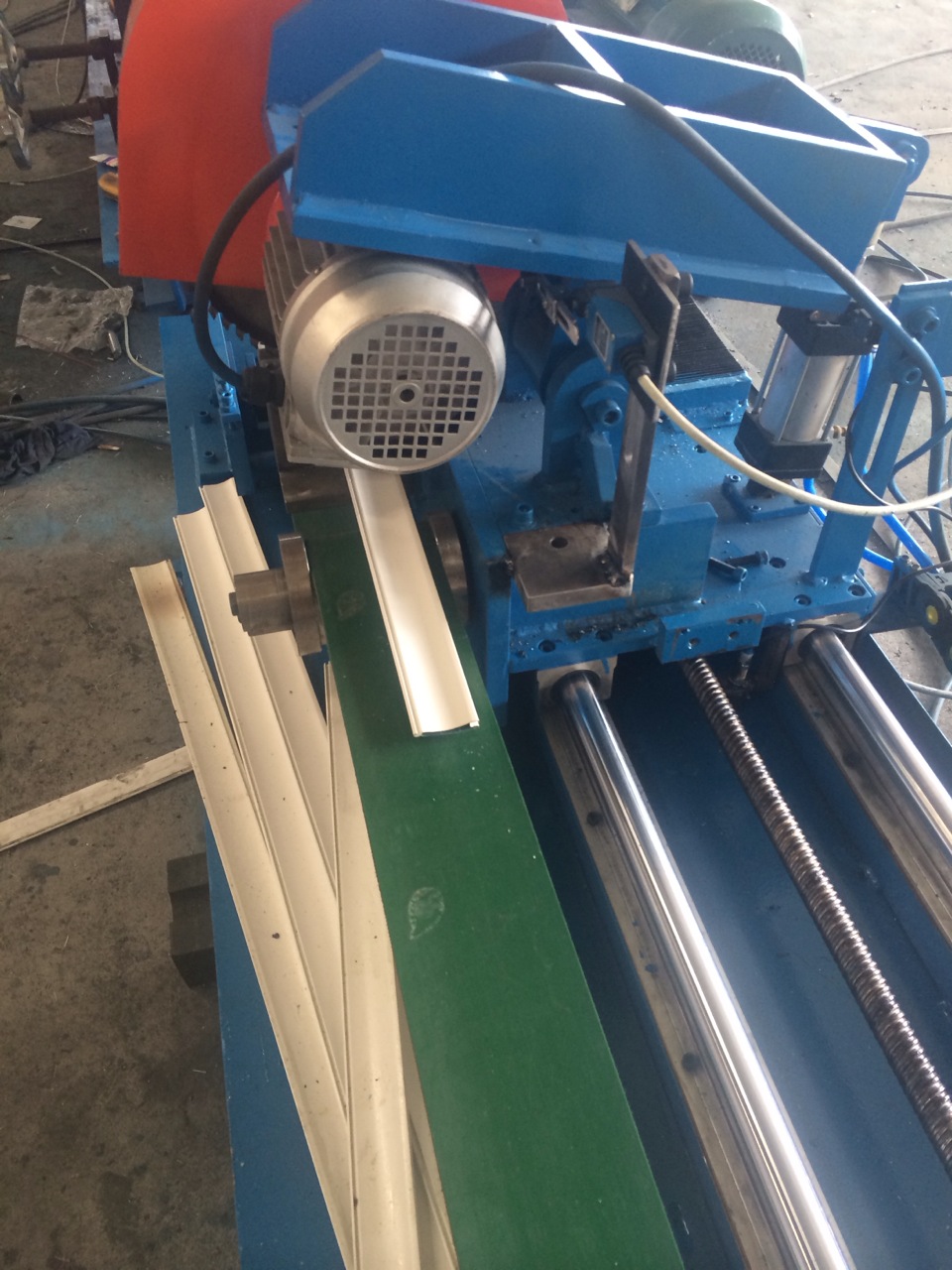

CUTTING PLATFORM

  1. Cutting type: Pneumatic Fly Saw cutter with servo control system
  2. Motor brand: China top motor 4KW; 380V; 50/60HZ
