Product Attributes

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, Italy, India, Mexico, France, Germany, Russia, Spain, Kenya, Morocco, Chile, South Africa

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Morocco, Kenya, Saudi Arabia, Turkey, South Africa, Chile, United Kingdom, United States, Italy, India, Mexico, France, Germany, Russia, Spain

Core Components: Plc

Out-of-warranty Service: Online Support

Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:

Set/Sets

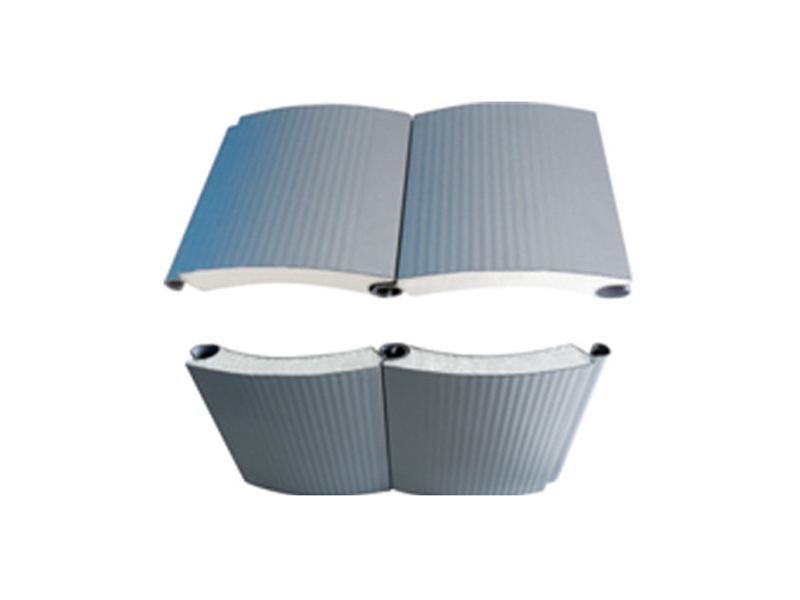

Windows & doors foam insulated shutters slat machine parameters:

Model (for windows):  37mm; 39mm; 42mm; 45mm (flat);55 mm

Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm

COMPLETE LINE LAYOUT

Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

1.Double head un-coiler:     2 tons capacity manual         one/unit

2.Main frame of forming machine   one/unit

3.Straighten part        one / unit

4. Pneumatic flying saw cutting machine        one / unit

5. Simple roller stacker     6 meters          one/unit

6. PLC system:          One/unit

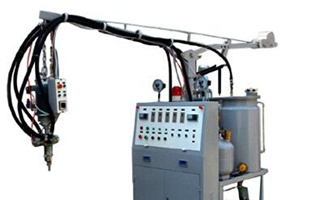

7.PU Foam injection machine: One/ set

1.Motor power: total 5.5 KW; 380V; 50/60HZ China brand

2.Mixing head with one spare is included

3.Mixing pump quantity: 8g/Second

4.Density: 70~80 Kg/m3

5.Mixing type: mechanical & automatic

6.Washing:  Automatic

7.Tank volume: 50 KG / tank. Both Poly and ISO

8.Brand of Foam machine: GREAT WALL.
