Product Attributes

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, Mexico, France, Russia, Germany, Spain, Chile, Kenya, Morocco, South Africa

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, Mexico, France, Russia, Germany, Spain, Morocco, Kenya, South Africa

Core Components: Plc

Out-of-warranty Service: Online Support

Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: china

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units: Set/Sets

1. Running material: Aluminum & Pre-painted Steel
2. Forming speed:6-15m/min
3. Forming steps: 16(as per drawing A)

Forming steps: 8(as per drawing B)

4. Thickness: 0.8mm-1mm

5.Roller material: GCr15、 HRC 60.Quchend; roller diameter φ120

6. Material of shaft: #45 steel, China standard
7. Drive system: chains Transmission system,
8. Main Motor Power: 5.5 KW
9. Cutting system: Flying saw cutting (3KW), cut off after forming.
10. PLC Control system: TOUCH SCREEN: DELTA

PLC: DELTA

INVERTER: DELTA

ENCODER: OMRON

Low components of electricity: Schneider Germany

11. Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place
12. Un-coiler: manual un-coiler: 2 tons capacity.
13. Drawings of profile
14. Dimension of Profile A: 6500*900*900MM Weight: 4Tons

Dimension of Profile B: 3000*900*900MM Weight: 2.5Tons

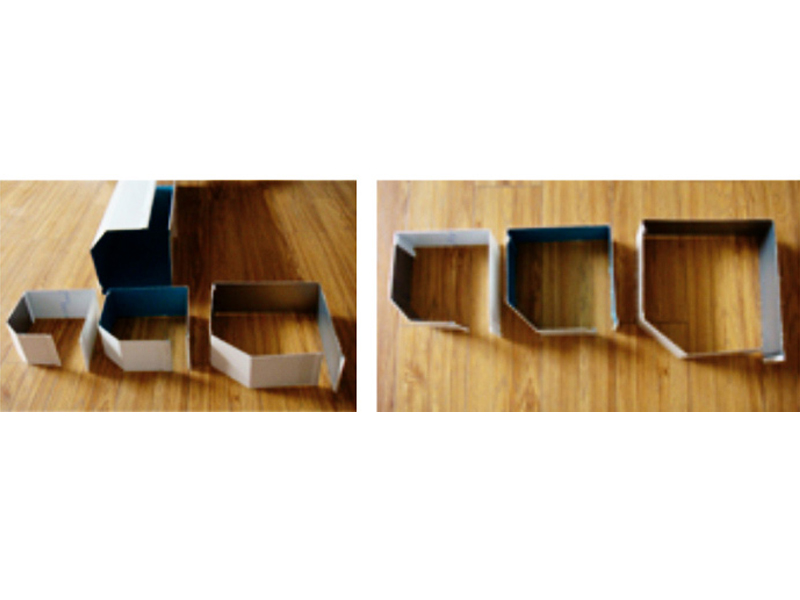

15. The picture of profiles:

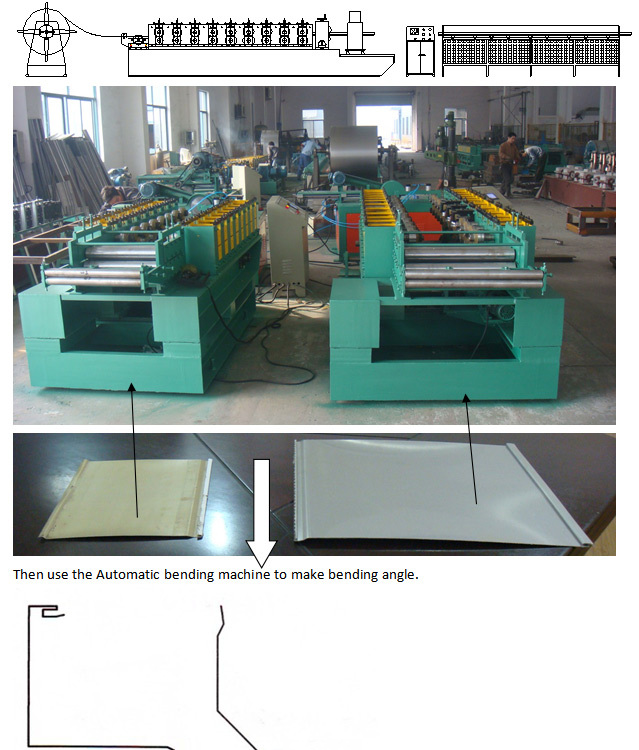

16. Main consist of the machine

    Un-coiler ----- Feeding device ----- PLC control -----Roll forming ----- Pneumatic flying saw device--- Run out table
