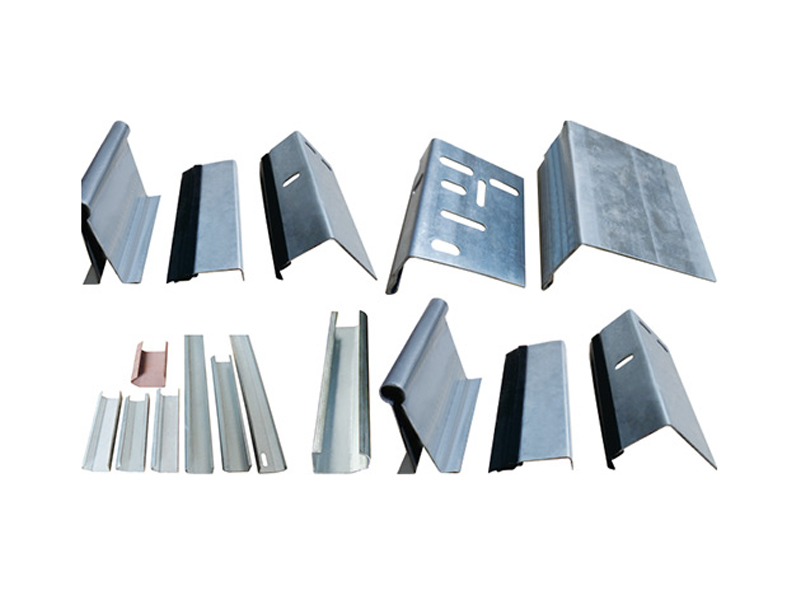

Garage Door Panel Series Roll Forming Machines



Payment Type: L/C,T/T

Incoterm: FOB,CFR,EXW,CIF

Min. Order: 1 Set/Sets

Transportation: Ocean

Port: shanghai

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Product Attributes

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, Mexico, France, Russia, Germany, Spain, Morocco, Kenya, Chile, South Africa

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, Italy, India, Mexico, France, Germany, Russia, Spain, Kenya, Morocco, Chile, South Africa

Out-of-warranty Service: Online Support

Core Components: Plc



Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,EXW,CIF



Packaging & Delivery

Selling Units: Set/Sets

Main Technical Data

Main component of the line:



NO.

name

quantity

Main roll former



1

Un-coiler (5 tons )

2

2

Embossing and firm machine

2

3

Automatic feeder and leveler (N.C)

1

4

Press machine(200ton)

1

5

Square mould

1

6

Upper roll former

1

7

Mark machine (N.C)

1

8

Down panel roll former

2(two types)

9

Double layer construction platform

1

10

Double bridge device and conveyor

1

11

Other conveyor

1

12

Hydraulic system

1

13

Electrical control system

1







2. PRE-HEATING SYSTEM



1

Heating house

1

2

pre-heating system

1

3

electrical control system

1







3.HIGH PRESSURE FOAM MACHINE



1

High pressure continuous foam machine

1

2

Pursing output device

1

3

Electrical control system

1

NO.

Name

Quantity

4. DOUBLE BELT SYSTEM



1

Double belts system(24M)

1

2

Chain supporting system of two side

1

3

Side-chain system

1

4

Heating machine for double belts

1

5

Electrical control system

1







5. Thickness and plastic mould



1

Mould & Plastic mould blade

1







6. CUTTING SYSTEM



1

Cutting saw blade

1

2

Conveyor with output table

1

3

Electrical control system

1



Technical Details

Panel Data

Facing layersmaterial: steel

Thickness to be specified

Panel type:Garage door panel

Dimensions of the final product

widthmin: 400mm

max: 600mm

Thicknessmin: 40mm

max: 60mm

Double belt length: 24m

Plant speed: max.10m/min.

min.2, 5m/min

Typical production range 4-6m/min

(Depending on foam system and cutting time)

Working height: 1.300mm

Height of production building:approx. 6m

Electrical Control System:

Temperature of production building: 15 - 35°C

Operating voltage: 380V

Operating frequency: 50Hz

control voltage: 220V

valve voltage: 24V

Signal voltage: 24V

PLC brand: Delta



NO.

ITEM

UNIT

PARAMETERS

REMARK

1

PANEL MATERIAL

TYPES



Pre-painted steel; Aluminum; Platinum

CUSTOMIZED

Hardness

MPa

≤350

Thickness

mm

0.4-0.8

Coil width

mm

≤1250

Coil ID

mm

500.600

Coil Weight

T

5.8.10

2

FOAM MATERIAL



EPS \ POLYURETHANE

CUSTOMIZED

3

Length of sandwich panel:

m

3-15



4

Length of sandwich panel:

mm

≤1050

CUSTOMIZED

4

Length of sandwich panel:

mm

≤200

CUSTOMIZED

5

SPEED OF OUTPUT

m/min

3-7



6

PRESSURE OF FOAM INJECTION

bar

150-200



7

Length of round convey

m

21

CUSTOMIZED

8

Controller



PLC INVERTER

9

Total Power

Kw

300

10

Overall dimensions

m

110x15x5
