Hot Sale Metal Rolling Shutter Forming Machine
Hot Sale Metal Rolling Shutter Forming Machine
Hot Sale Metal Rolling Shutter Forming Machine
Hot Sale Metal Rolling Shutter Forming Machine

Hot Sale Metal Rolling Shutter Forming Machine



Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Min. Order: 1 Set/Sets

Transportation: Ocean

Port: shanghai

sales@cxrollformer.com

Tel: 008613357917888

Whatsapp: 8613357917888

Hot Sale Metal Rolling Shutter Forming Machine
Hot Sale Metal Rolling Shutter Forming Machine
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Product Attributes

Model No.: LB-75

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops, Construction Works, Manufacturing Plant

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, Italy, India, Mexico, France, Germany, Russia, Spain, Indonesia, Viet Nam, Philippines, Australia, Malaysia, Morocco, Thailand, Kenya, Argentina, South Korea, Chile, Uae, South Africa, Uzbekistan, Romania, Ukraine, Tajikistan, Algeria

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, France, Mexico, Russia, Germany, Spain, Kenya, Morocco, Chile, South Africa

Core Components: Plc, Gearbox, Gear, Bearing, Engine, Motor

Out-of-warranty Service: Online Support, Spare Parts

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 2 Years

Warranty Period: 2 Years

Applied Material: Stainless Steel, Carbon Steel, Aluminum

Core Selling Point: Easy To Operate



Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

HS Code: 8455229090

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW



Packaging & Delivery

Selling Units: Set/Sets

Technical Details

Un-coiler

  1. Capacity: 2 tons
  2. Material: #45 steel quenched
  3. Inner diameter: 410~ 580mm

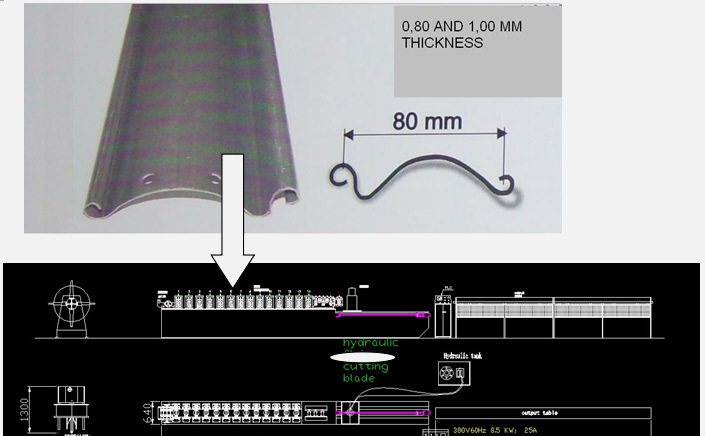

Main roll former

  1. Stations: 13
  2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA
  3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
  4. Bearing brand: FAG Germany
  5. Main Motor: 5.5 KW, 380V, 50HZ

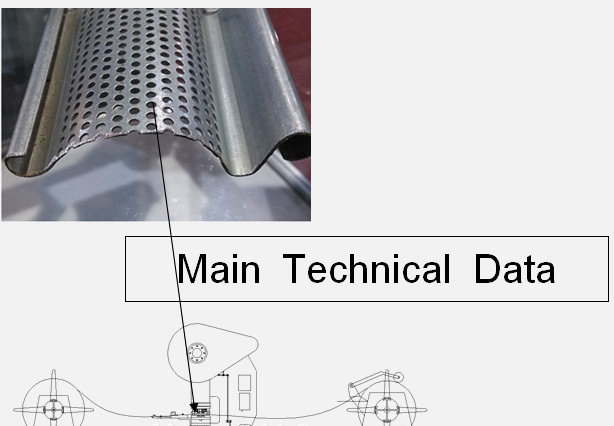

Un-coiler --Pneumatic feeder -- Micro perforation -- Re-coiler



1

Un-coiler (automatic) 2 tons

1

2

Mechanical press machine

1

3

Pneumatic feeder

1

4

Re-coiler (automatic)

1

5

Perforated mould

1





Main component of the line:

NO.

name

quantity

Main roll former



1

Un-coiler (2 tons ) MANUAL

1

2

roll former

1

3

Hydraulic cutter

1

4

PLC control cabinet

1

5

Output table with rollers(6 meters)

1



CHAMICAL COMPOSITION:



C

SI

MN

P

S

CR

NI

CU

MO

AI

V

B

Shaft

0.450

0.220

0.540

0.027

0.008

0.050

0.020

0.010

0.000

0.009

0.000

0

Rollers

1.00

0.32

0.33

0.011

0.003

1.49

0.05

0.00

0.02

0.041





Cutter

1.57

0.34

0.38

0.022

0.010

11.10

0.18

0.14

0.48







Cut knife

2.04

0.23

0.23

0.020

0.010

11.66

0.12

0.06









PLC Control Cabinet:

  1. Touch screen brand: DELTA
  2. PLC brand: DELTA
  3. Inverter brand: DELTA
  4. Main components for low pressure electricity: Schneider Germany
  5. Encoder: Omron



Output table

  1. Length: 6 meters
  2. Drive type: Rollers



CUTTING PLATFORM

  1. Cutting type: Hydraulic system
  2. Motor: 4KW; 380V; 50HZ
  3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
