Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, Italy, India, Mexico, France, Germany, Russia, Spain

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, France, Mexico, Russia, Germany, Spain

Core Components: Plc

Out-of-warranty Service: Online Support

Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units: Set/Sets

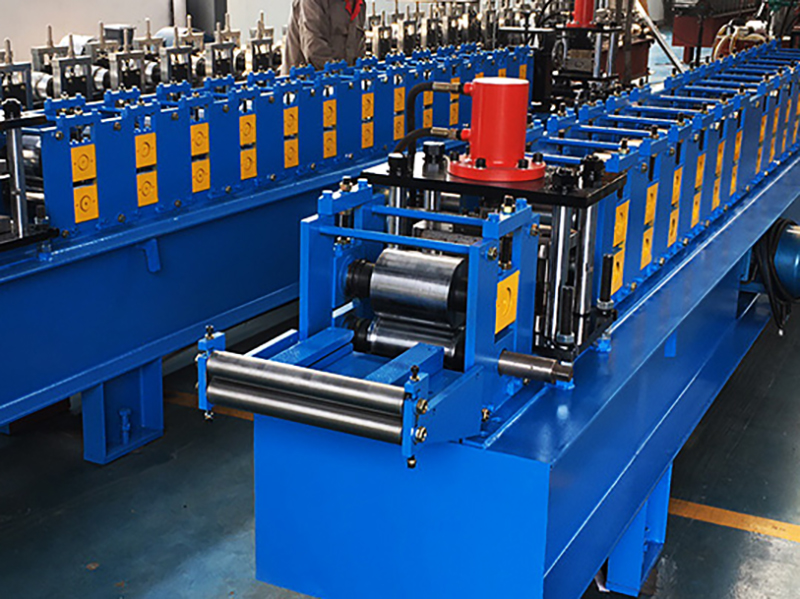

1、Suitable plate of the rolling :For your choice

2、Forming speed: 2-4m/min

3、Forming stands: 12 Thickness: 2.0mm

4、Roller material: CR15, HRC 60℃、Roller datum roller diameter φ120

5、Material of principal axis: Fine steel modulation processing of 45（axis diameter:φ50）

6、Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs

7、Motor power: 7.5 KW

8、Cut-off system: Adopts hydraulic pressure drive, cut off after forming.

9、Hydraulic system electrical machinery power: 4 KW

10、Hydraulic system pressure: 10Mpa

11、PLC Control system: Brand of Delta; Touch screen is brand of Delta；Encoder is Omron brand; the inverter is the Delta brand

12、Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place

13.Overall Dimension: 5000mmX800mmX900mm

14, Total weight: 3.5 ton approximately

15.Un-coiler: 2 Ton capacity of manual un-coiler

16.Hydraulic pre-punching system①② included

The production procession

Un-coiler ---------- Feeding device --- Pre-punching①② ---Roll forming ----- PLC control --- Hydraulic cutting---- Run out table
