Metal Rolling Shutters U Channel Series Forming Machine
Metal Rolling Shutters U Channel Series Forming Machine
Metal Rolling Shutters U Channel Series Forming Machine
Metal Rolling Shutters U Channel Series Forming Machine

Metal Rolling Shutters U Channel Series Forming Machine



Min. Order: 1 Set/Sets

Transportation: Ocean

Port: shanghai

sales@cxrollformer.com

Tel: 008613357917888

Whatsapp: 8613357917888

Metal Rolling Shutters U Channel Series Forming Machine
Metal Rolling Shutters U Channel Series Forming Machine
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Product Attributes

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops



Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

Port: shanghai



Packaging & Delivery

Selling Units: Set/Sets

Main Technical Data



Main component of the line:



NO.

name

quantity

1

Un-coiler (2 tons ) MANUAL

1

2

roll former

1

3

Hydraulic cutter

1

4

PLC control cabinet

1

5

Output table with rollers(6 meters)

1
Technical Details

Un-coiler

  1. Capacity: 2 tons
  2. Material: #45 steel quenched
  3. Inner diameter: 410~ 580mm



Main roll former

  1. Stations: 20
  2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON,800 MPA
  3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
  4. Bearing brand: FAG Germany
  5. Main Motor: 5.5 KW, 380V, 50HZ



CHAMICAL COMPOSITION:



C

SI

MN

P

S

CR

NI

CU

MO

AI

V

B

Shaft

0.450

0.220

0.540

0.027

0.008

0.050

0.020

0.010

0.000

0.009

0.000

0

Rollers

1.00

0.32

0.33

0.011

0.003

1.49

0.05

0.00

0.02

0.041





Cutter

1.57

0.34

0.38

0.022

0.010

11.10

0.18

0.14

0.48







Cut knife

2.04

0.23

0.23

0.020

0.010

11.66

0.12

0.06









PLC Control Cabinet:

  1. Touch screen brand: Delta
  2. PLC brand: Delta
  3. Inverter brand: Delta
  4. Main components for low pressure electricity: Schneider Germany



Output table

  1. Length: 6 meters
  2. Drive type: Rollers

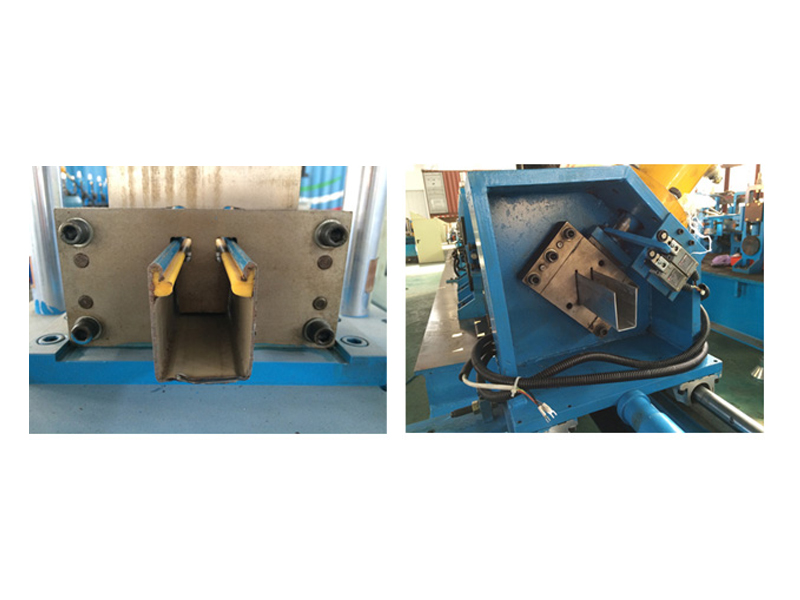

CUTTING PLATFORM

  1. Cutting type: Hydraulic cutter
  2. Motor: 4KW; 380V; 50HZ
  3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
