Product Attributes

Brand: Chuangxu

Status: New

Applicable Industry: Building Material Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, Italy, India, Mexico, France, Germany, Russia, Spain, Morocco, Kenya, Chile, South Africa

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Egypt, Brazil, Peru, Turkey, Saudi Arabia, United Kingdom, United States, India, Italy, France, Mexico, Russia, Germany, Spain, Morocco, Kenya, Chile, South Africa

Core Components: Plc

Out-of-warranty Service: Online Support

Supply Ability & Additional Information

Transportation: Ocean

Place of Origin: China

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units: Set/Sets

1、Suitable plate of the rolling :For your choice

2、Forming speed: 3-5m/min (pre-punching system is included)

3、Forming stands: 12 Thickness: 1.5 ~2.0mm

4、Roller material: CR15, HRC 60 Degree. Roller diameter φ120

5、Material of principal axis: Fine steel modulation processing of 45（axis diameter:φ50）

6、Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs

7、Motor power: 7.5 KW

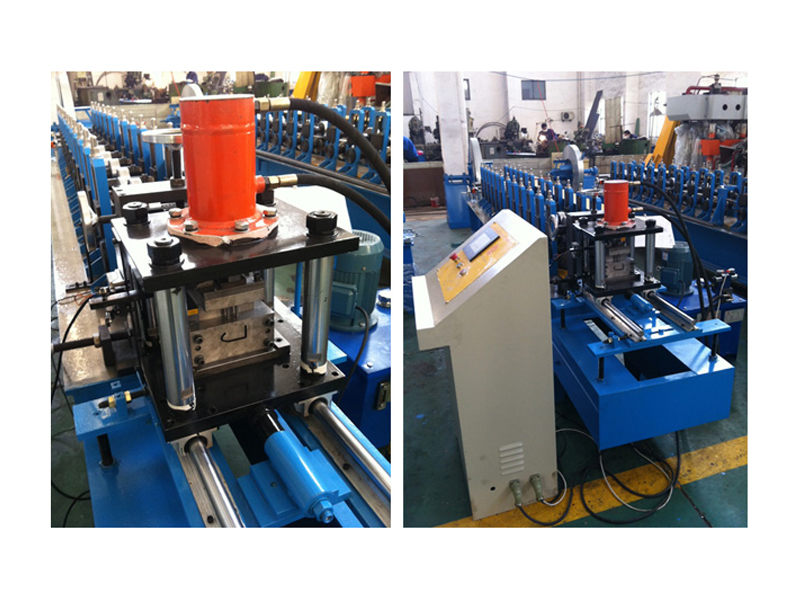

8、Cut-off system: Adopts hydraulic pressure drive, cut off after forming.

9、Hydraulic system electrical machinery power: 3 KW

10、Hydraulic system pressure: 10Mpa

11、PLC Control system: Delta system

12、Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place

13、Overall Dimension: 3500mmX700mmX900mm

14、Total weight: 2.5 ton approximately

15、Un-coiler: 2 Ton capacity of manual un-coiler

16、The production procession

Un-coiler ---------- Feeding device -------Roll forming ---- Pre-punching- PLC control --- Hydraulic cutting ---- Run out table
